post #1 of 30 (permalink) Old 02-17-2009, 06:45 PM Thread Starter
Expert

Outy's Avatar

Join Date: Oct 2004
Location: Moncton,N.-B.,Canada
Posts: 916
Send a message via Yahoo to Outy
Glove Box Latch
If it breaks no need to break glove Box to open


2004 Mitsubishi Outlander XLS AWD (234186Kms) Just lately my daugther kneed my glove compartement and broke the latch. Do not panic. Here is how you can open the glove box without breaking anything. Picture #1 Broken latch: When you lift this latch you will see a slit approximately 1mm by 5mm picture #2. Insert jewellers screw driver pointing strait up even if picture shows at angle; picture #3 then pull screwdriver handle towards you; picture #4 and then open sesame;picture #5. (MR979806)Brown replacement latch but in my case (MR639803) charcoal gray replacement latch (12.46$). Two #0 Philips trust head screws hold the latch in place (last picture). Hope this helps for later problems.
Attached Images
File Type: jpg 100_9589.JPG (104.3 KB, 41 views)
File Type: jpg 100_9590.JPG (101.3 KB, 42 views)
File Type: jpg 100_9592.JPG (89.4 KB, 48 views)
File Type: jpg 100_9593.JPG (120.6 KB, 43 views)
File Type: jpg 100_9594.JPG (69.7 KB, 47 views)
File Type: jpg latch.JPG (92.7 KB, 40 views)
File Type: jpg latch_from_inside.JPG (59.2 KB, 47 views)
Outy is offline
Sponsored Links
Advertisement

post #2 of 30 (permalink) Old 01-01-2010, 06:50 PM Thread Starter
Expert

Outy's Avatar

Join Date: Oct 2004
Location: Moncton,N.-B.,Canada
Posts: 916
Send a message via Yahoo to Outy
purge tank fault no start up

I only have 232000Kms but 5 times out of the last 6 fill-ups my Outlander would not start unless I floored it and cranked it. The first time I tought I had run out of gas and it just took a little time to reprime. But then it did it again and again and only when I refueled. I tried unscrewing gas cap for 5 minutes and putting it back on and it started fine. This is one for you expert Mitsubishi mechanics because I'm stumped. No check engine light and no codes.
Outy is offline
post #3 of 30 (permalink) Old 01-01-2010, 09:18 PM
Newbie

Join Date: Sep 2009
Posts: 23
So it is fine on normal start ups? It's only the first time after you've refueled that it does this?
jpierson is offline

post #4 of 30 (permalink) Old 01-01-2010, 09:49 PM Thread Starter
Expert

Outy's Avatar

Join Date: Oct 2004
Location: Moncton,N.-B.,Canada
Posts: 916
Send a message via Yahoo to Outy
Yes it starts A1 any other time. It just cranks and cranks after fuel-up unless I put the pedal to the floor.
Outy is offline
post #5 of 30 (permalink) Old 01-01-2010, 10:34 PM
Newbie

Join Date: Sep 2009
Posts: 23
Purge valve?
jpierson is offline
post #6 of 30 (permalink) Old 01-01-2010, 10:52 PM
Veteran

srsone's Avatar

Join Date: Jun 2008
Location: naples,fl
Posts: 4,034
Garage
check the canister...if the canister has gone bad the extra fuel vapor will make it act like its flooded

I am a rocker, I am a roller, I am an out of controller!
the nightrider


What the **** is an aluminum falcon?
srsone is offline
post #7 of 30 (permalink) Old 01-02-2010, 08:18 AM Thread Starter
Expert

Outy's Avatar

Join Date: Oct 2004
Location: Moncton,N.-B.,Canada
Posts: 916
Send a message via Yahoo to Outy
Does purge only happen at fuel-up or is this just coincidence.
Outy is offline
post #8 of 30 (permalink) Old 01-02-2010, 01:22 PM
Veteran

srsone's Avatar

Join Date: Jun 2008
Location: naples,fl
Posts: 4,034
Garage
i forget when purge happens on the older ones...
but if the raw fuel from fill up is getting in the canister and the system is already bad,because its not purging normally the extra fuel and vapor arent properly used...

i used to run into that on hyundais all the time...and some older mitsus

also check the fill valve in the neck..

I am a rocker, I am a roller, I am an out of controller!
the nightrider


What the **** is an aluminum falcon?
srsone is offline
post #9 of 30 (permalink) Old 01-03-2010, 12:41 AM Thread Starter
Expert

Outy's Avatar

Join Date: Oct 2004
Location: Moncton,N.-B.,Canada
Posts: 916
Send a message via Yahoo to Outy
Went for fill-up tonight, same thing again would not start unless I floored it. I will get cannister checked-out and let you know.
Outy is offline
post #10 of 30 (permalink) Old 01-04-2010, 02:14 PM Thread Starter
Expert

Outy's Avatar

Join Date: Oct 2004
Location: Moncton,N.-B.,Canada
Posts: 916
Send a message via Yahoo to Outy
Elm327 comes in handy and pays for itself. I just got a check engine light. Code P0441 '' Evap incorrect purge flow'' Will have to go to manual for possible solution to problem. Unless one of U guys know what it is off hand.
Attached Images
File Type: jpg elm_327.JPG (742.5 KB, 35 views)
Outy is offline
post #11 of 30 (permalink) Old 01-04-2010, 04:11 PM
Veteran

srsone's Avatar

Join Date: Jun 2008
Location: naples,fl
Posts: 4,034
Garage
that means the pcm isnt see the change in purge while the evap syatem is running..
which could mean the purge valve..or the canister is bad
i cant look up the code at the moment tho...

but usually hard time filling or stalling after fill means evap problems...
so im not surprised u got a code

I am a rocker, I am a roller, I am an out of controller!
the nightrider


What the **** is an aluminum falcon?
srsone is offline
post #12 of 30 (permalink) Old 01-05-2010, 05:04 PM Thread Starter
Expert

Outy's Avatar

Join Date: Oct 2004
Location: Moncton,N.-B.,Canada
Posts: 916
Send a message via Yahoo to Outy
Old valve always open ( which explains why plenum was filling-up with fumes when filling fuel tank). Replaced Purge valve today (MR988075)( 125.57$ Cdn). Remove electrical connector, remove two 10mm screws that holds bracket to manifold, remove the two hoses, remove 10mm nut that holds valve to bracket then re-assembled with new valve. Problem solved , I reset code and went for a drive and fuel fill-up. Everything works A OK. Posted pictures of old valve so you know what it looks like. Also pictures of engine bay. Adobe & jpeg procedure for testing.
Attached Images
File Type: jpg 100_1191.JPG (856.0 KB, 78 views)
File Type: jpg MR988075.JPG (883.2 KB, 70 views)
File Type: jpg GR00000900_17_84.jpg (319.8 KB, 63 views)
File Type: jpg OLD_valve.JPG (277.0 KB, 60 views)
Attached Files
File Type: pdf GR00000900_17_84.pdf (98.3 KB, 25 views)
Outy is offline
post #13 of 30 (permalink) Old 01-06-2010, 06:08 AM Thread Starter
Expert

Outy's Avatar

Join Date: Oct 2004
Location: Moncton,N.-B.,Canada
Posts: 916
Send a message via Yahoo to Outy
I forgot to mention it was about a 5 to 10 minute job....Thanks for sending me in the right direction jpierson
Outy is offline
post #14 of 30 (permalink) Old 01-11-2010, 04:02 PM
Newbie

Join Date: Nov 2009
Posts: 2
replace timing belt and balance shaft belt


I have a 2003 Outlander and was wondering what tool and part number so I can remove the crank GEAR and replace the counter balance shaft belt. Thanks for the help
miloz is offline
post #15 of 30 (permalink) Old 01-11-2010, 07:41 PM Thread Starter
Expert

Outy's Avatar

Join Date: Oct 2004
Location: Moncton,N.-B.,Canada
Posts: 916
Send a message via Yahoo to Outy
Here's a few sheets for 4G69. Not sure 2003 has a balance belt 4G64. As you can see no special tools, just a socket. Watch out for screw lenght on timing belt cover.
Attached Images
File Type: jpg Pages_from_GR00000600_11A_5.jpg (319.2 KB, 109 views)
File Type: jpg Pages_from_GR00000600_11A_1.jpg (342.8 KB, 104 views)
Attached Files
File Type: pdf Pages_from_GR00000600_11A_1.pdf (130.1 KB, 62 views)
File Type: pdf Pages_from_GR00000600_11A_2.pdf (116.2 KB, 87 views)
File Type: pdf Pages_from_GR00000600_11A_3.pdf (93.4 KB, 54 views)
File Type: pdf Pages_from_GR00000600_11A_4.pdf (79.6 KB, 51 views)
File Type: pdf Pages_from_GR00000600_11A_5.pdf (88.7 KB, 56 views)
Outy is offline
post #16 of 30 (permalink) Old 02-07-2010, 12:38 PM
Member

Join Date: Apr 2007
Location: Milton, Ontario
Posts: 56
Thumbs down

Cabin filter replacement


Hi all, I just change my 2005 Mitsubishi Outlander cabin air filter. And made a short video clip would like to share with you

http://www.youtube.com/watch?v=qY4MsDlepP8

OE Replacement Cabin Air Filter Part No: MR398288

^J^
Attached Images
File Type: jpg Picture_016.jpg (1.72 MB, 90 views)
File Type: jpg Picture_018.jpg (1.74 MB, 55 views)
File Type: jpg Picture_028.2.JPG (475.4 KB, 64 views)
File Type: jpg Picture_030.1.JPG (440.4 KB, 55 views)
File Type: jpg Picture_034.jpg (1.32 MB, 56 views)
File Type: jpg Picture_039.jpg (1.60 MB, 88 views)
File Type: jpg Picture_047.jpg (1.47 MB, 54 views)
File Type: jpg Picture_050.jpg (1.89 MB, 44 views)
File Type: jpg Picture_057.jpg (1.46 MB, 42 views)
File Type: jpg Picture_073.jpg (1.66 MB, 32 views)
File Type: jpg Picture_075.jpg (1.61 MB, 30 views)
File Type: jpg Picture_083.jpg (1.35 MB, 22 views)
File Type: jpg Picture_091.jpg (1.70 MB, 20 views)

2016 Mitsubishi Outlander GT V6 S-AWC (less Navigation Package)
THULE Roof Racks (KIT4030, ARB53)
Draw-Tite Hitch (75888, 63080)
SportRack Aero 1300 Cargo Roof Box (A26395)

(was) 2005 Mitsubishi Outlander LS FWD 2.4 L (266,052 km)
THULE Roof Racks (45050)
Draw-Tite Hitch (24732)
SportRack Aero 1300 Cargo Roof Box (A26395)
danvo is offline
post #17 of 30 (permalink) Old 02-09-2010, 12:41 PM Thread Starter
Expert

Outy's Avatar

Join Date: Oct 2004
Location: Moncton,N.-B.,Canada
Posts: 916
Send a message via Yahoo to Outy
Cleaning this filter should not be an option since the carbon filter will lose it's full potential after a period of time. Mitsubishi recommends replacing every year. I know they are expensive but you can get aftermarket filters now at half the dealer price. I always replace mine just before pollen season and spray cooling core with fungae disinfectant. My youngest daughter suffers a lot less from allergies this way.
Attached Images
File Type: jpg Cabin_air_filterJPG.jpg (1.03 MB, 52 views)
Outy is offline
post #18 of 30 (permalink) Old 08-19-2010, 03:52 PM
Member

Join Date: May 2008
Posts: 41
just in case if any first time installers like myself having trouble, heres the image from pdf file named "TYC #: 800083C"
Attached Images
File Type: jpg cabin_filter.jpg (879.0 KB, 57 views)
aiexbadboy is offline
post #19 of 30 (permalink) Old 12-12-2011, 07:01 AM
Member

Join Date: Jul 2011
Location: Eldoret-Kenya
Posts: 45
How to replace a dimmer or wiper switches


Hi all I Recently have to change my dimmer switch as it worn out, and i did it myself it was really so easy job and would like to share it with all and it works for both arms
Am havinh Airtrek 2004 and its right hand but sure its the same even for left hand one


You will only need a flat head and star head or cross head screw drivers


Step 1

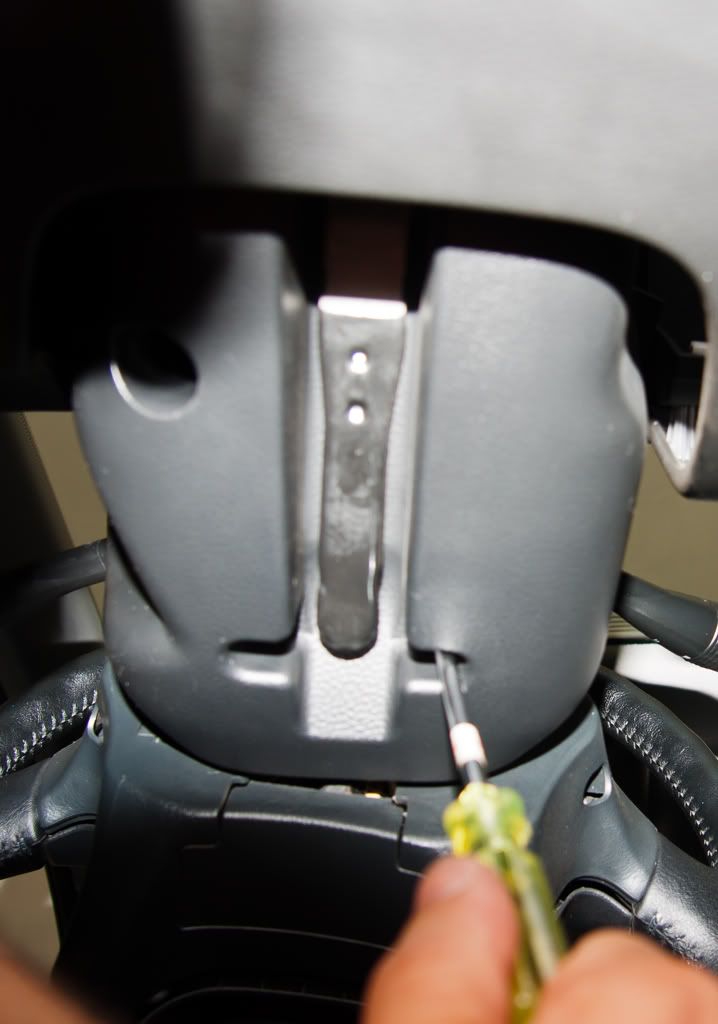

Release the lower cover of the steering wheel (there are 3 screws holding the cover under the steering wheel) using the cross head screw driver






Step 2

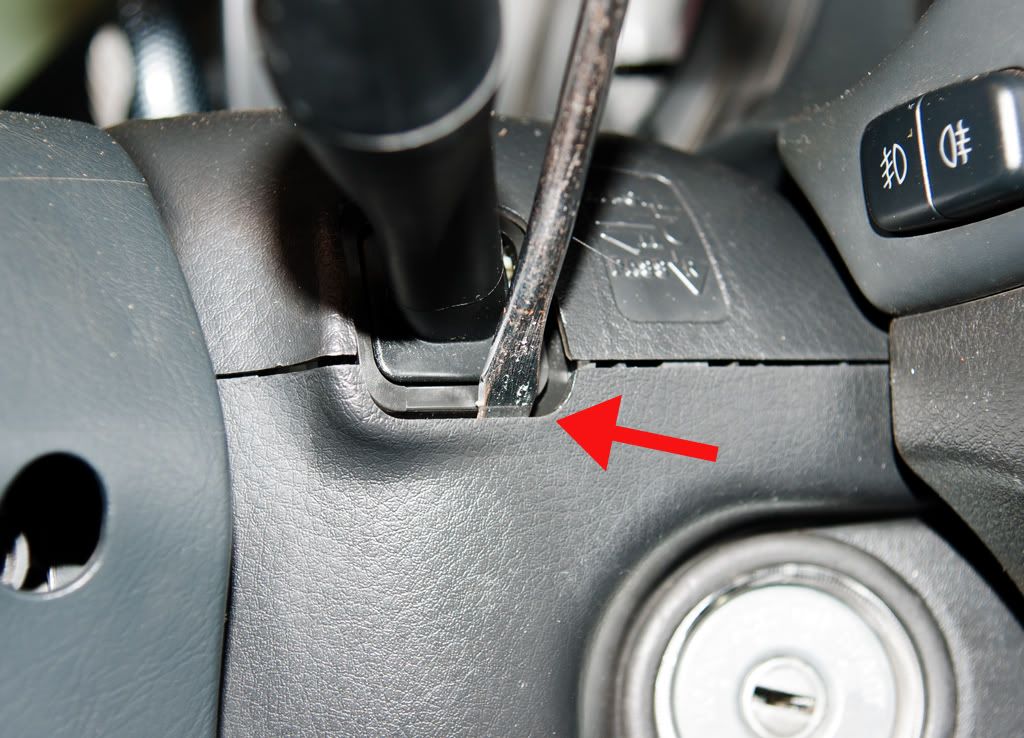

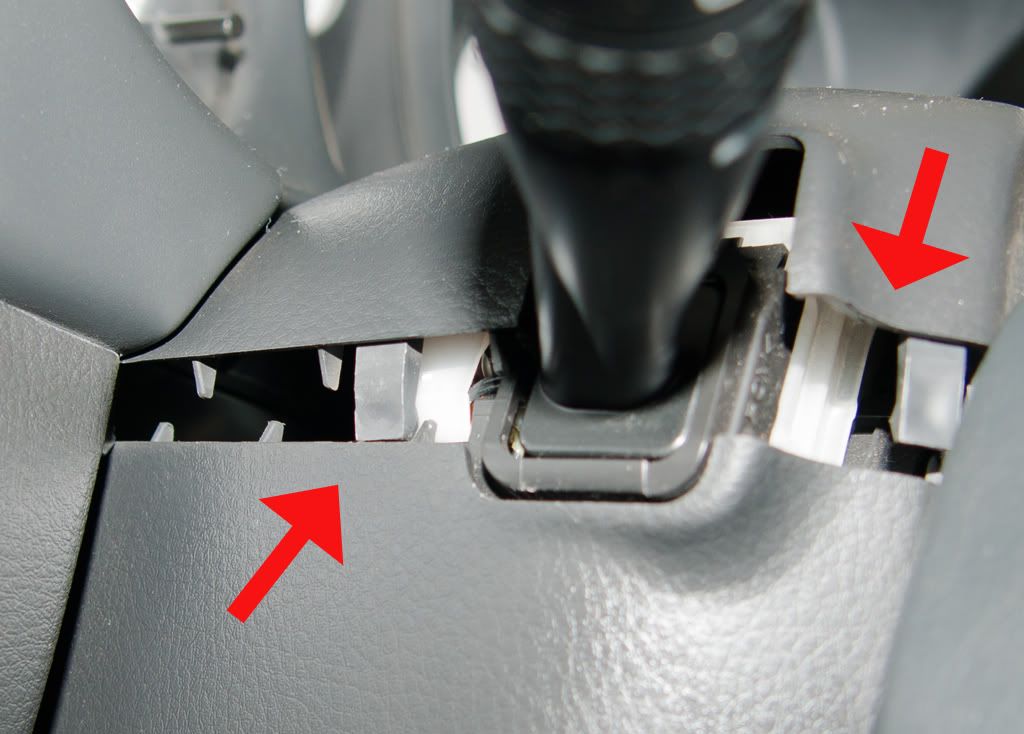

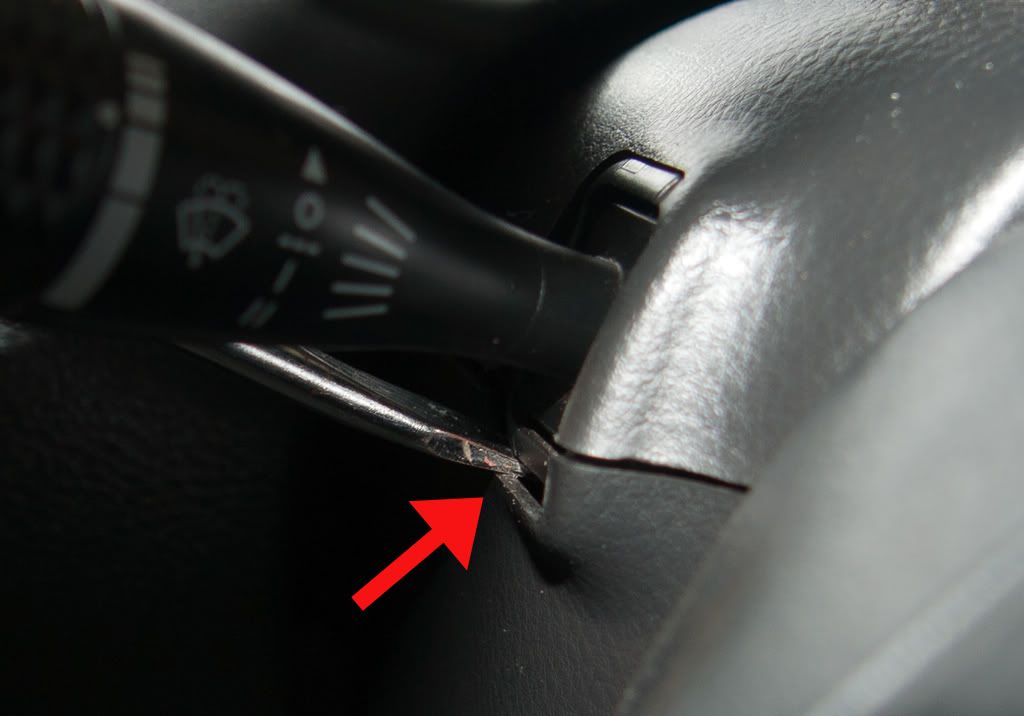

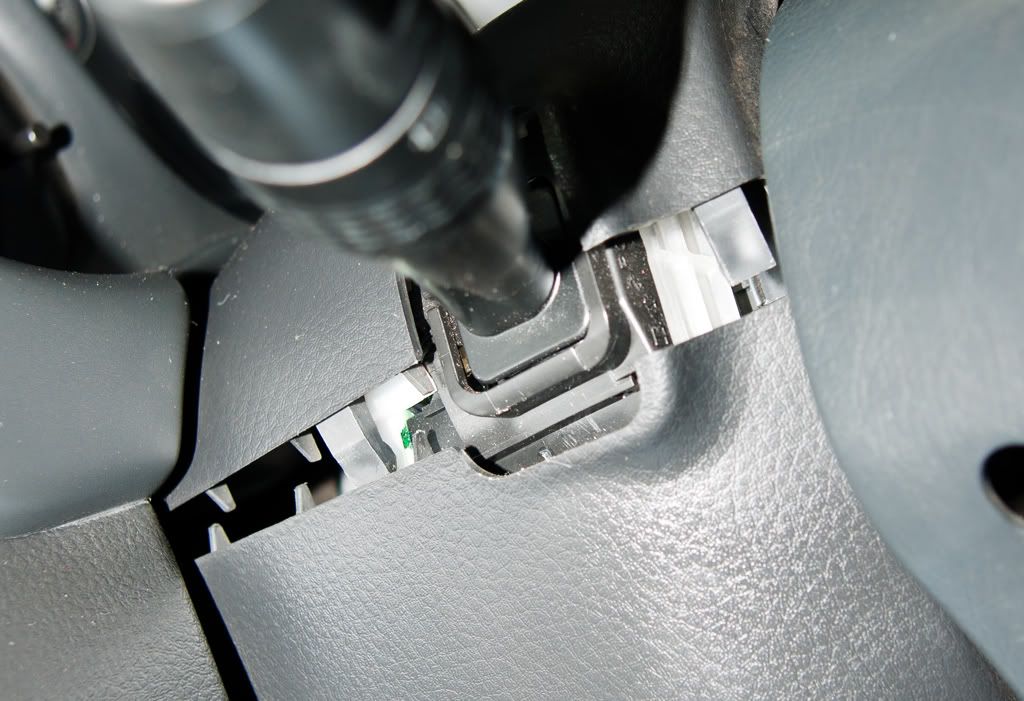

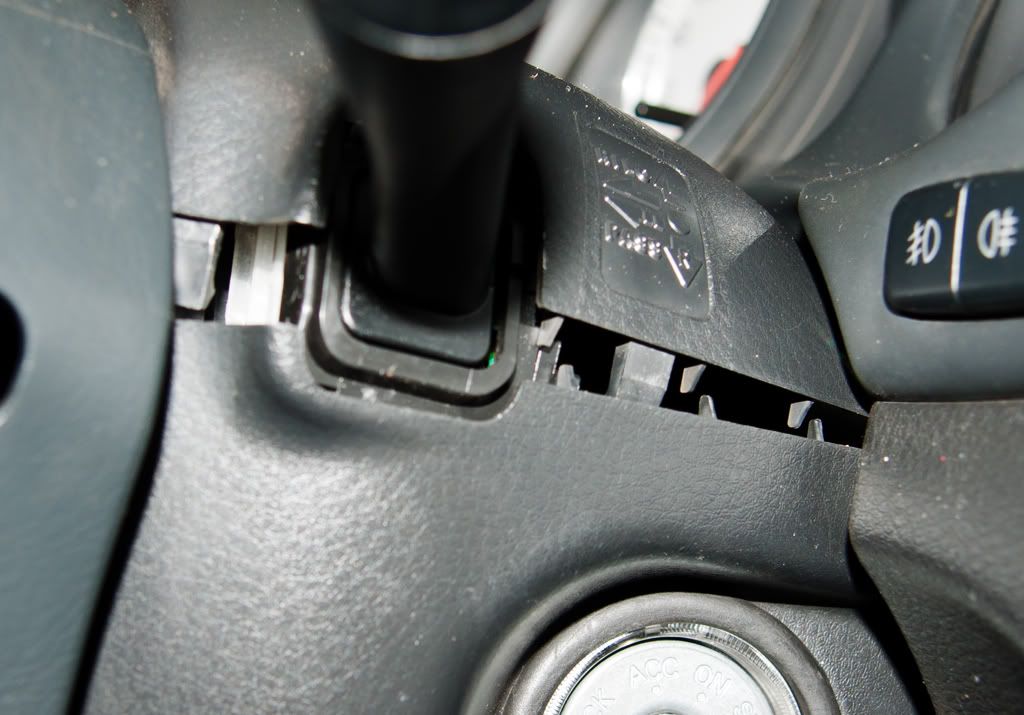

Release the locking clips that holding the upper and lower covers from both sides by using the flat end screw driver















Step 3

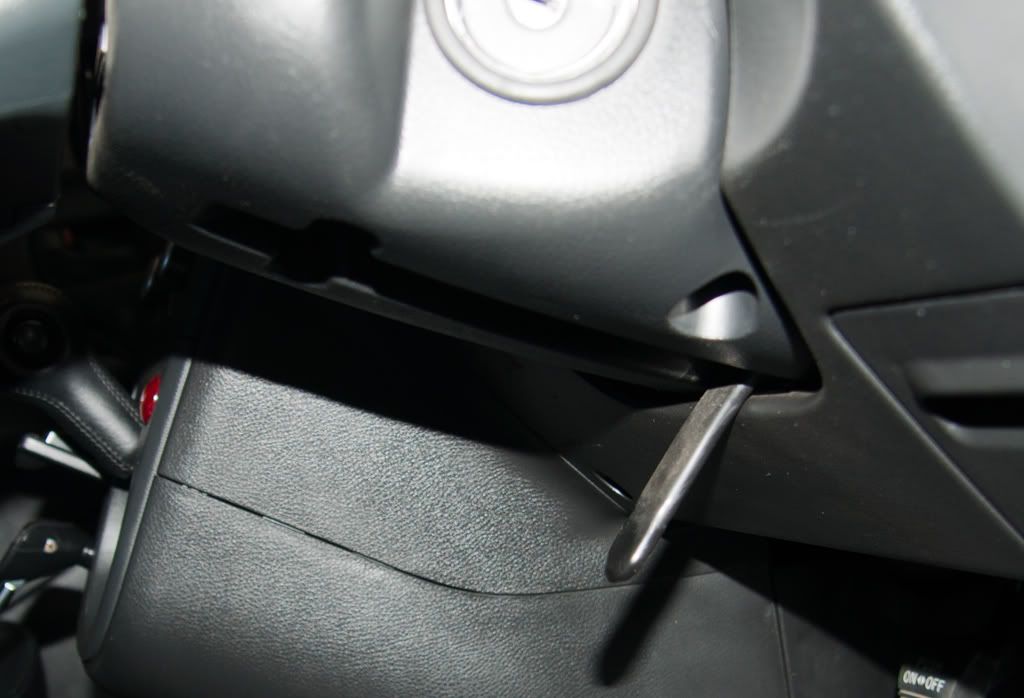

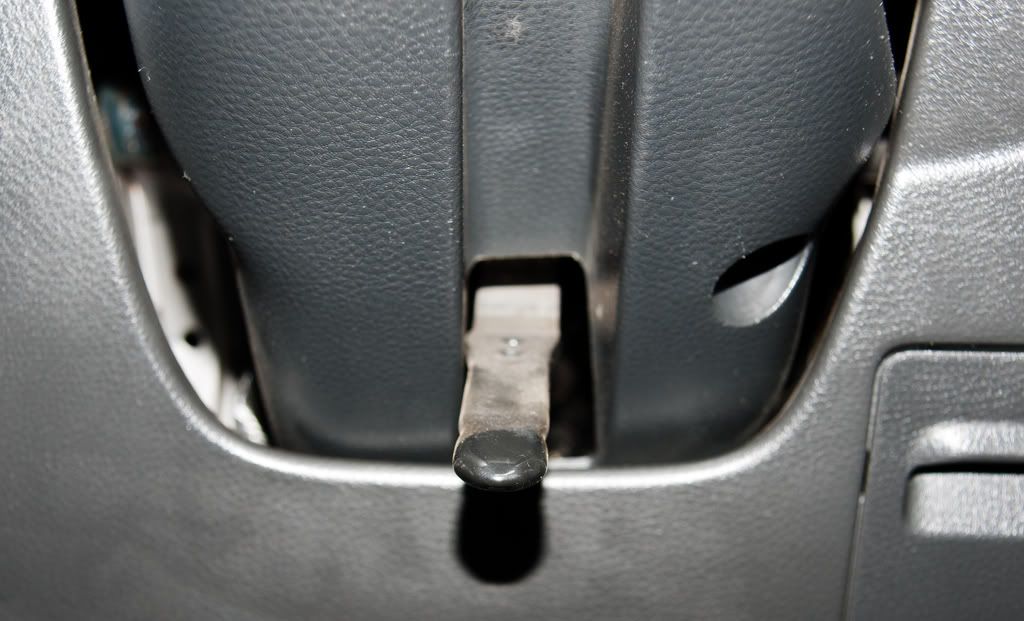

Release the arm which control the steering wheel position so the whole wheel be movable to make it easy to remove the covers










Step 4

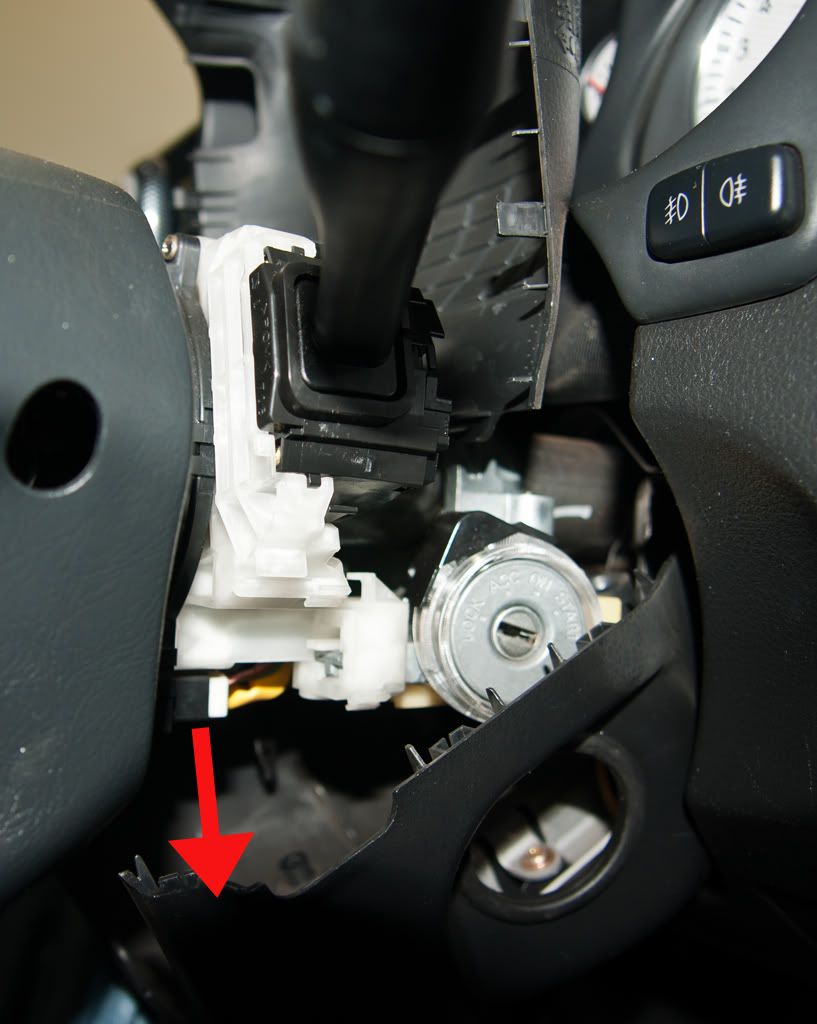

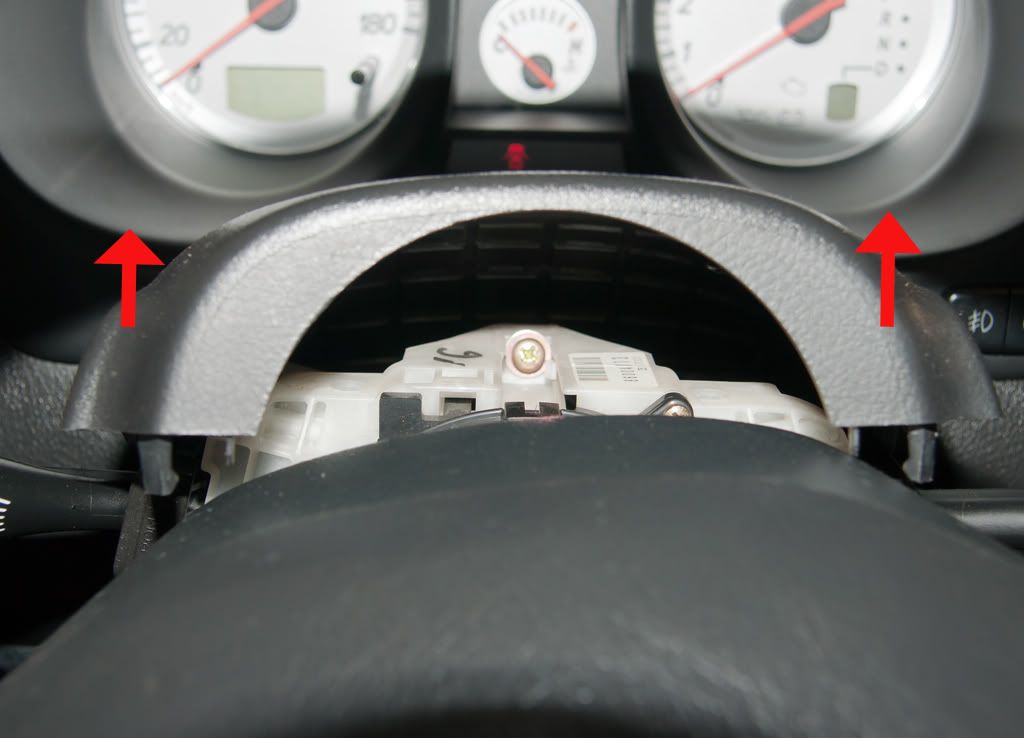

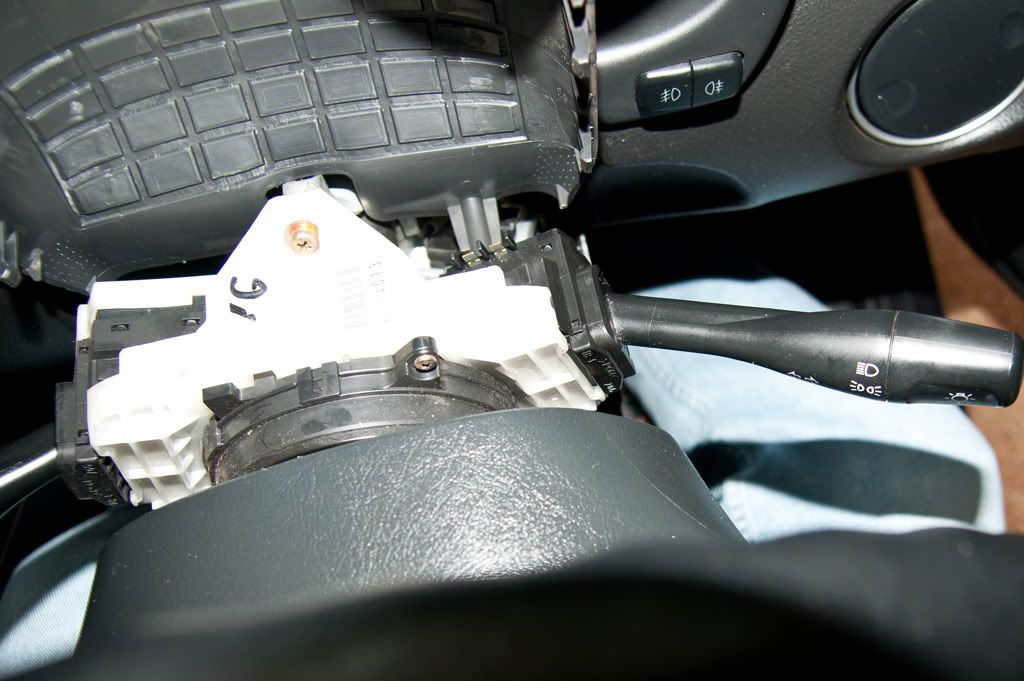

Lift the upper cover upward and the lower one downward










Step 5

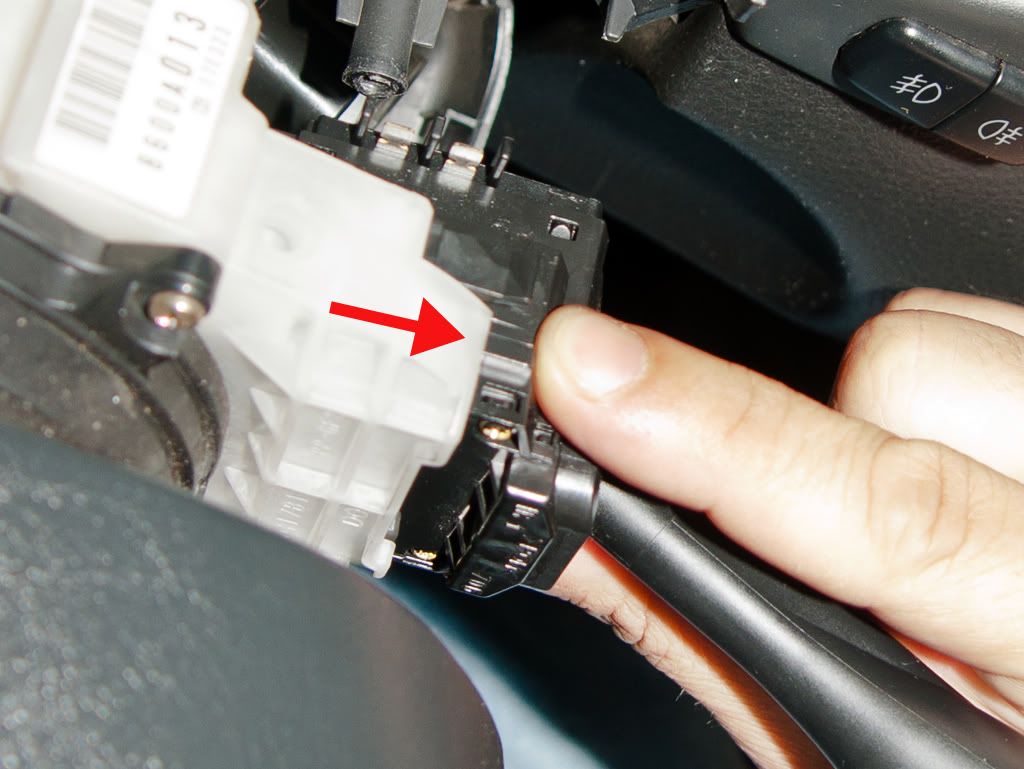

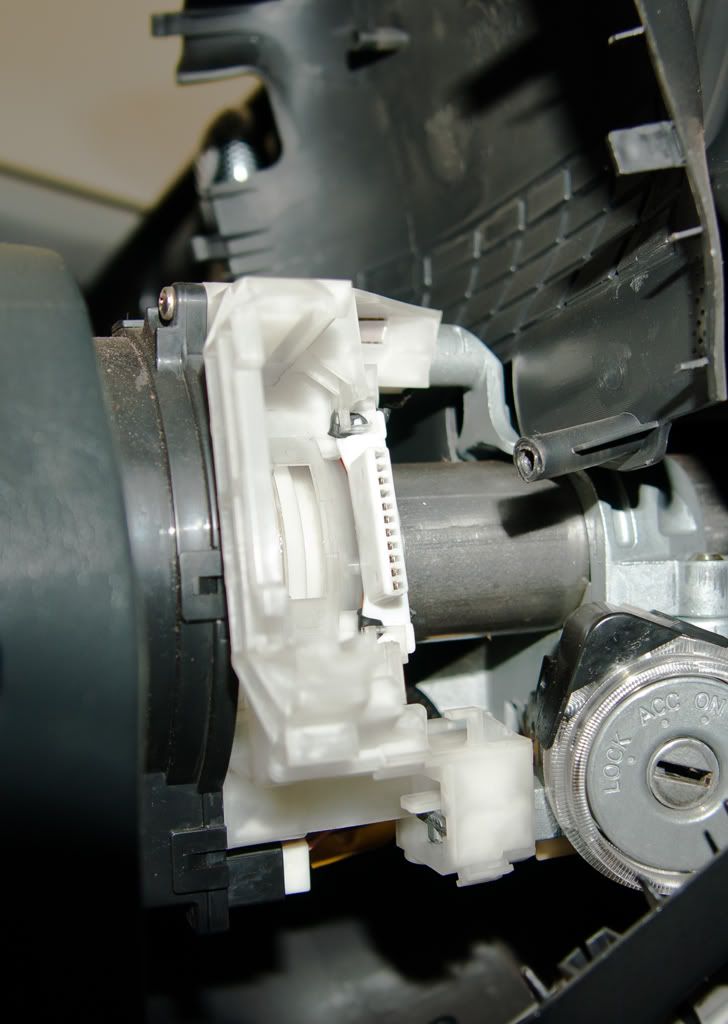

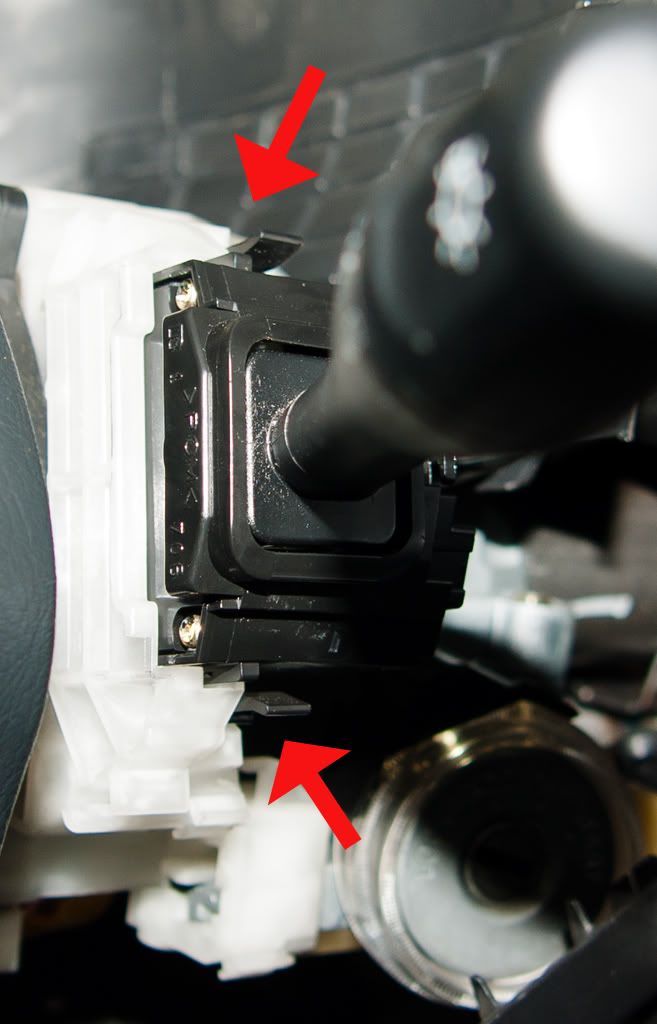

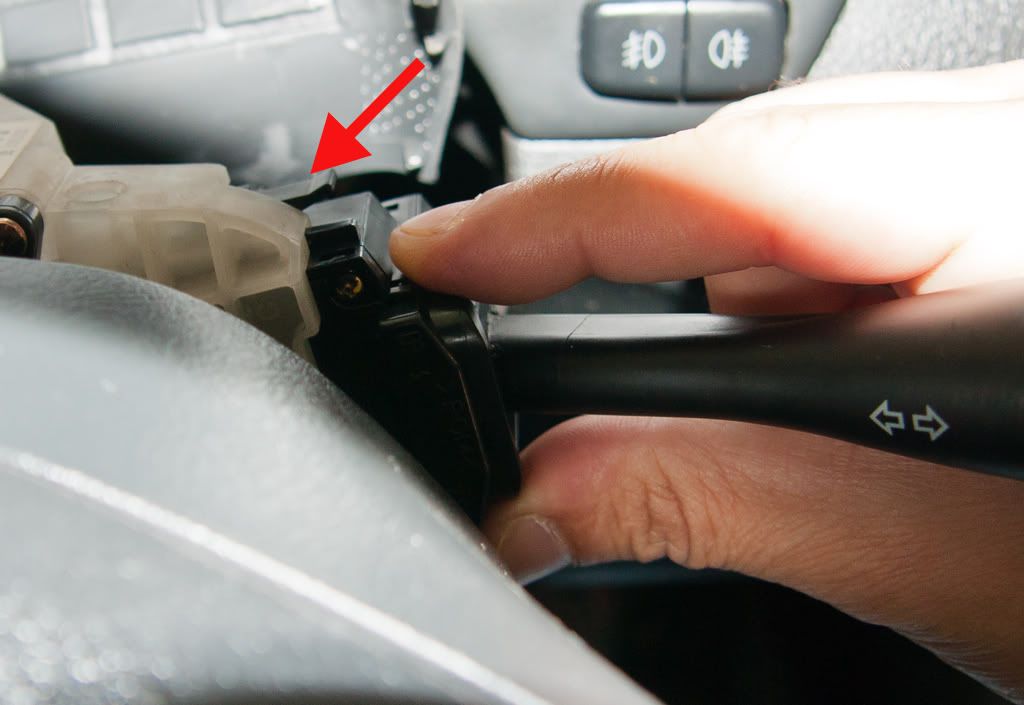

Press the 2 clips that holding the switch and gently pull it out from the steering wheel








Softarno is offline
post #20 of 30 (permalink) Old 12-12-2011, 07:02 AM
Member

Join Date: Jul 2011
Location: Eldoret-Kenya
Posts: 45
Step 6
Replace the new one and while inserting make sure u pressing the clips and gently push it in until it locked inside













Step 7

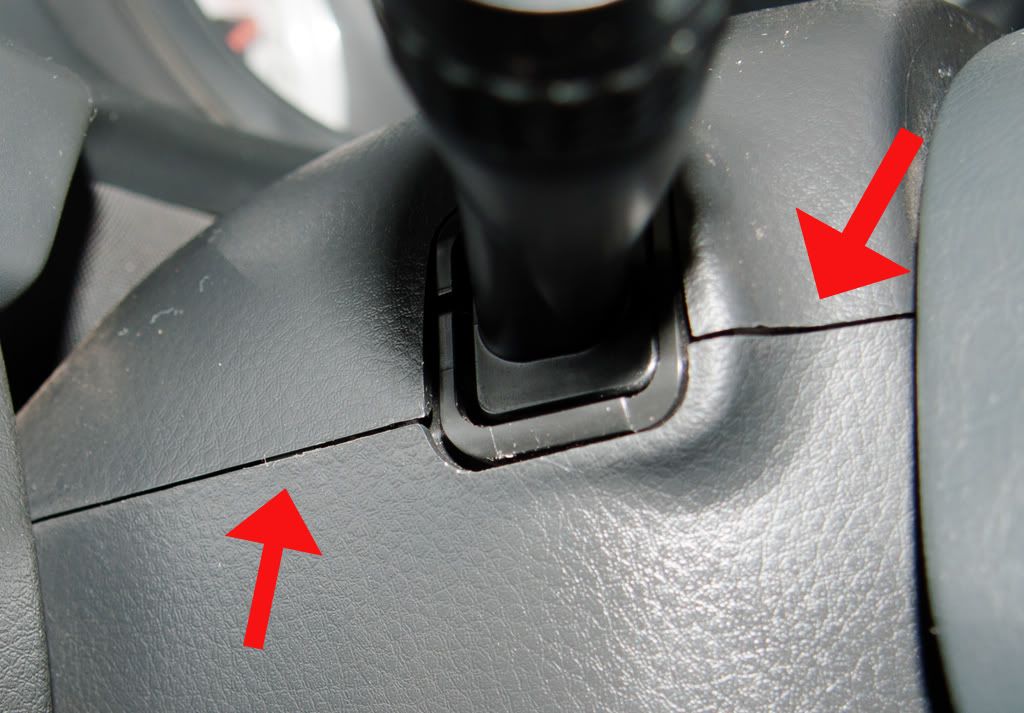

Place the 2 covers in position again and adjust the locks opposite to each other and lock them from both sides






[






Step 8
Screw the lower cover and we are done






Hope it was clear for all
Regards
Softarno is offline
